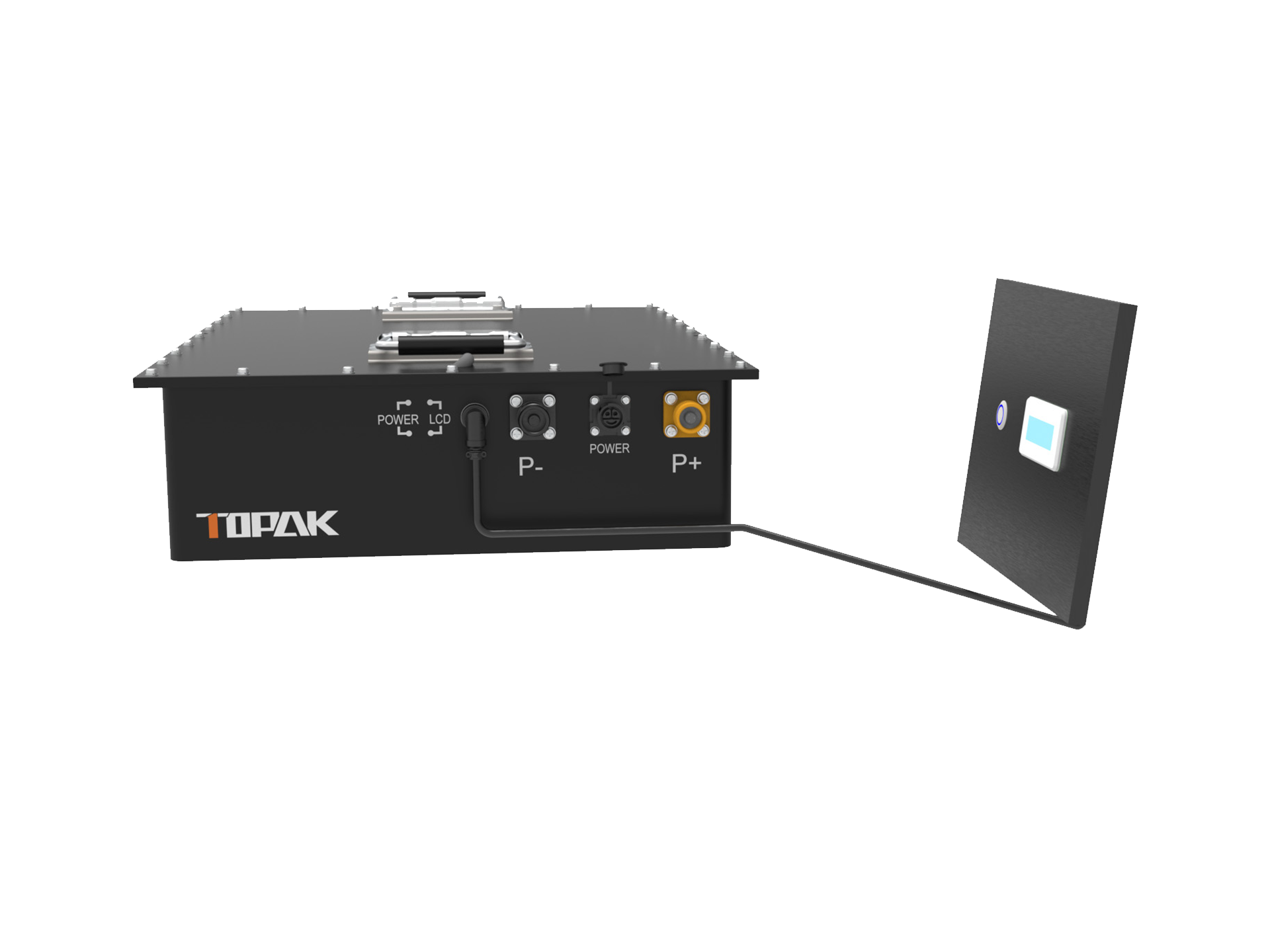

TOPAK-A1007 65.7V110Ah GO-KARTS
| Specifications Nominal Voltage (V): |
65.7V
|
| Nominal Capacity(Ah): |
110Ah
|
| Rated Energy (Wh): |
7227Wh(7.23KWh)
|
| Maximum Charging Voltage (V): |
110A
|
| Maximum Charging Current (A): |
54A
|
| Maximum Continuous Discharge Current(A): |
200A
|
| Maximum Peak Discharge Current @2s (A): | 220A |
| Maximum Load Power (W): |
13140W
|
| Discharge Cut-OffVoltage (v): |
50.4V
|
| Cell Model: |
INP27148101A-55Ah
|
| Cell Combination: |
18S2P
|
| Cycle Life: |
2000 room temperature (80%)
|
| Protection Rating: | IP67 |
| Approximate Weight (kg): |
Approx. 50kg
|
|
Dimension(mm)：
|
543*393*120
|
| Application Areas: |
GO-KARTS
|
