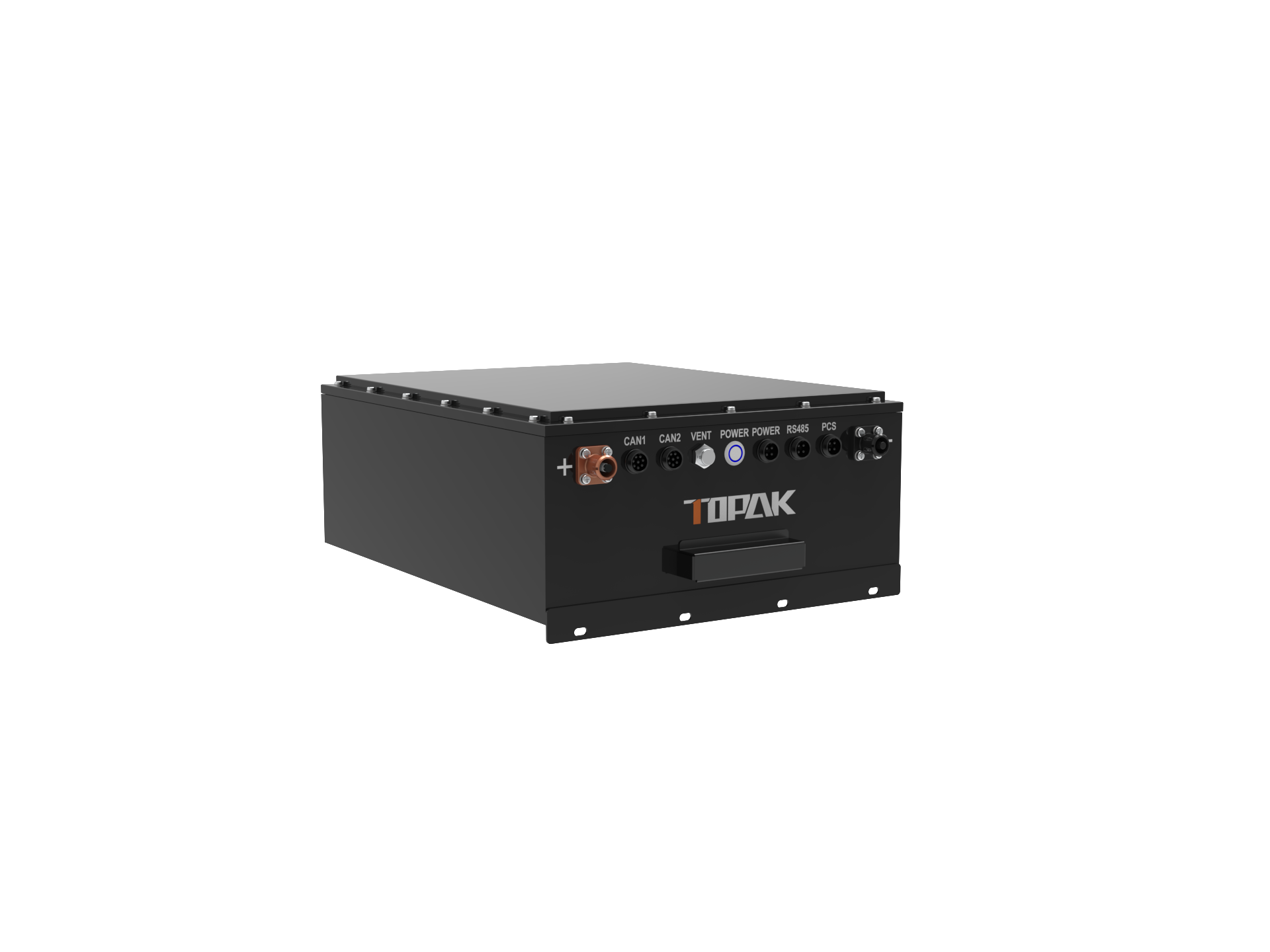

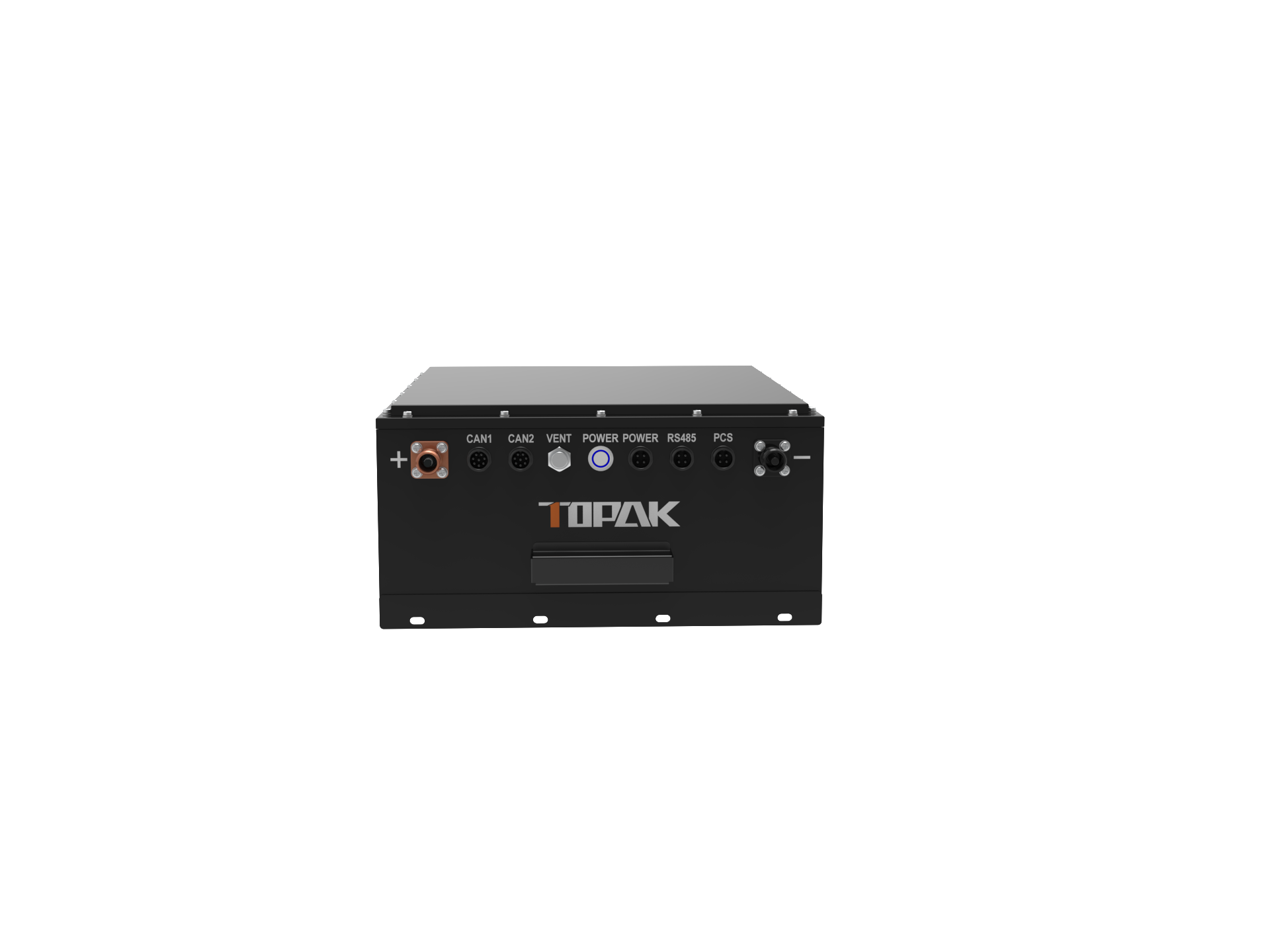

TOPAK-A959 51.2V400Ah
| Specifications Nominal Voltage (V): |
51.2V
|
| Nominal Capacity(Ah): |
400Ah
|
| Rated Energy (Wh): |
20480Wh(20.48KWh)
|
| Maximum Charging Voltage (V): |
58.4V
|
| Maximum Charging Current (A): |
400A
|
| Maximum Continuous Discharge Current(A): |
400A
|
| Maximum Peak Discharge Current @2s (A): |
480A
|
| Maximum Load Power (W): |
20480W
|
| Discharge Cut-OffVoltage (v): |
40V
|
| Cell Model: |
LF50F-50Ah
|
| Cell Combination: |
16S1P*8 parallel
|
| Cycle Life: |
1500 room temperature 0.5C/0.5C (80%)
|
| Protection Rating: | IP67 |
|
Product specification number:
|
YF-05-000381
|
| Approximate Weight (kg): |
about 30kg/battery pack
|
|
Dimension(mm)：
|
700*420*350
|
| Application Areas: |
FISHING BOATS, YACHTS
|
