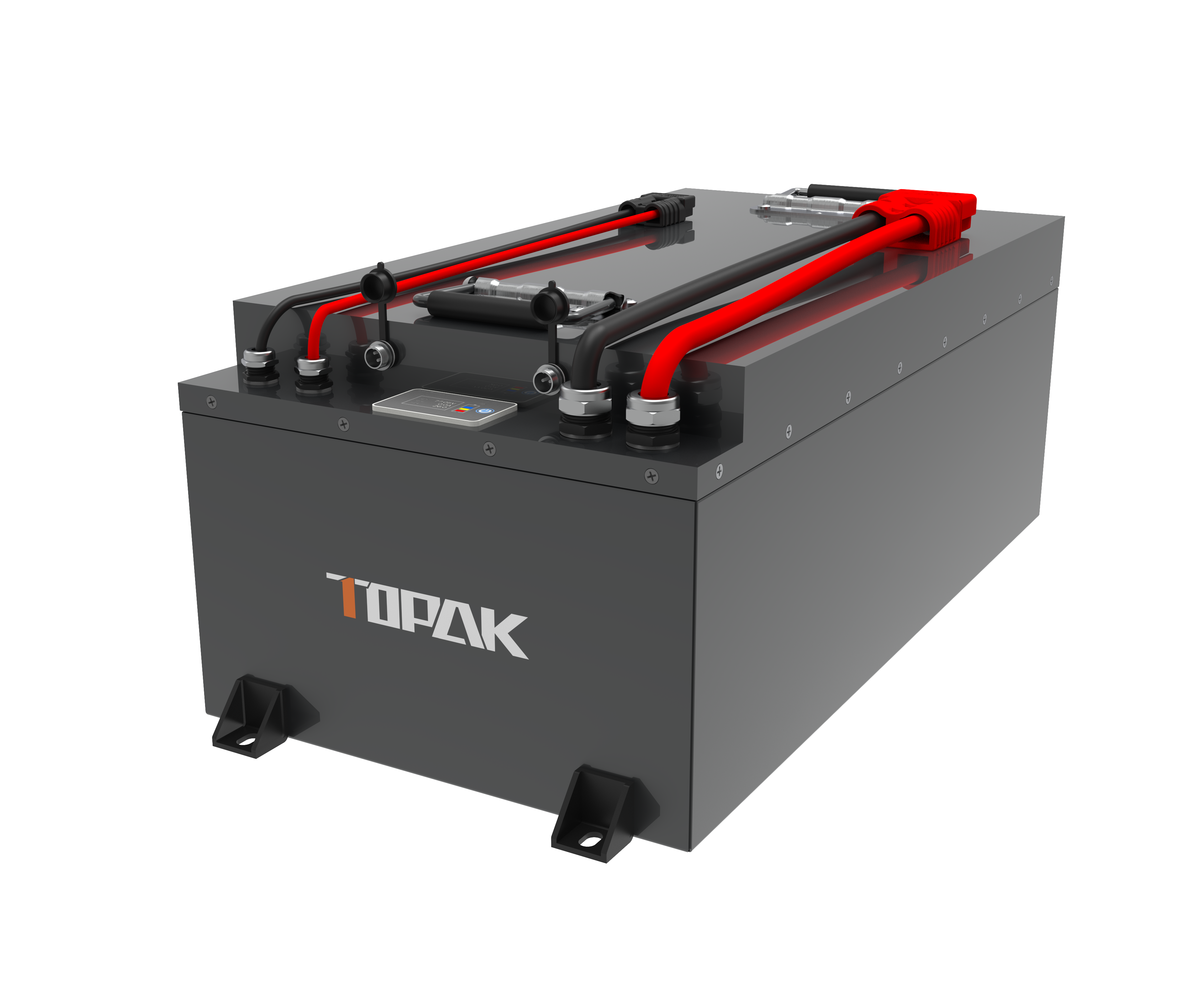

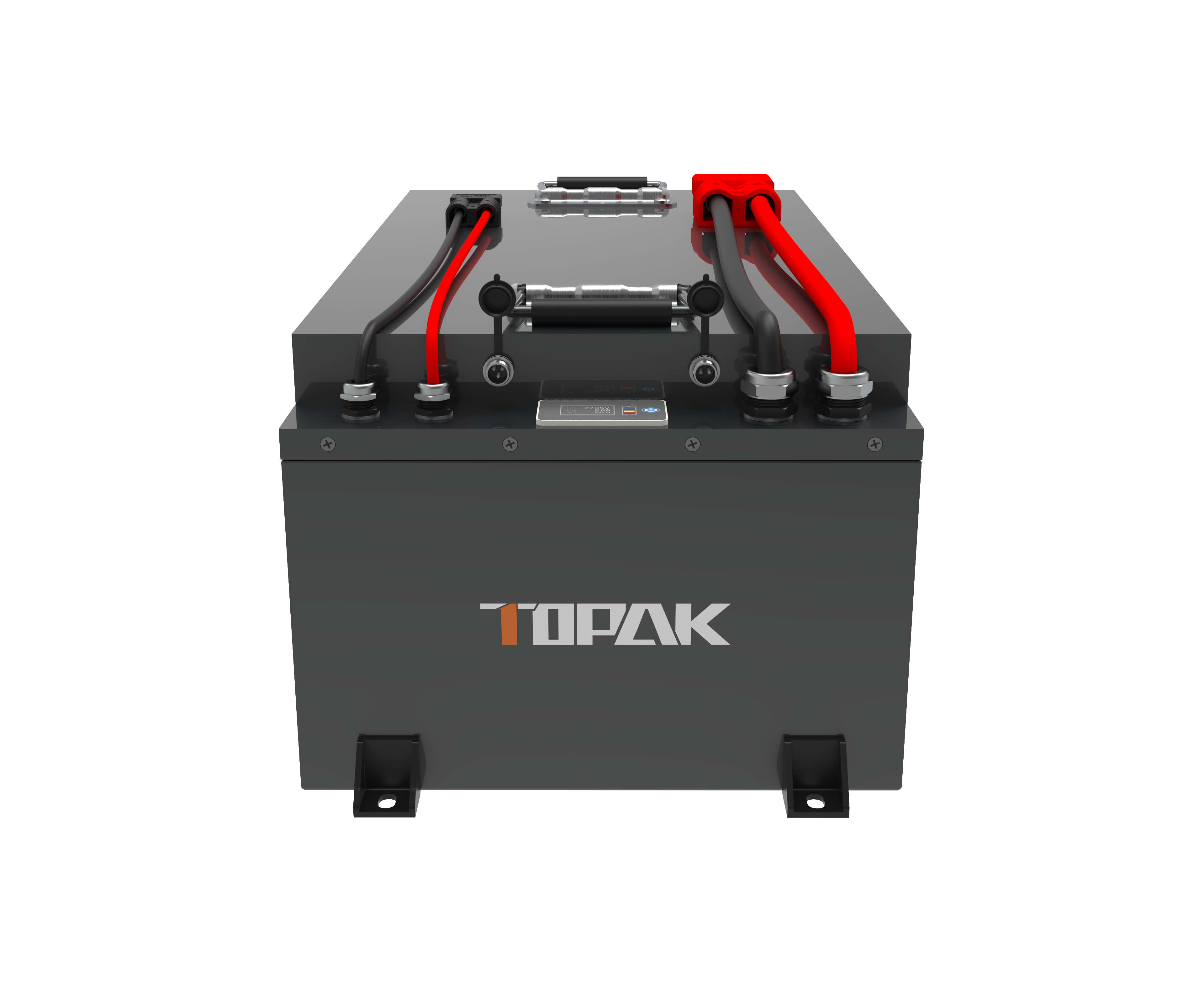

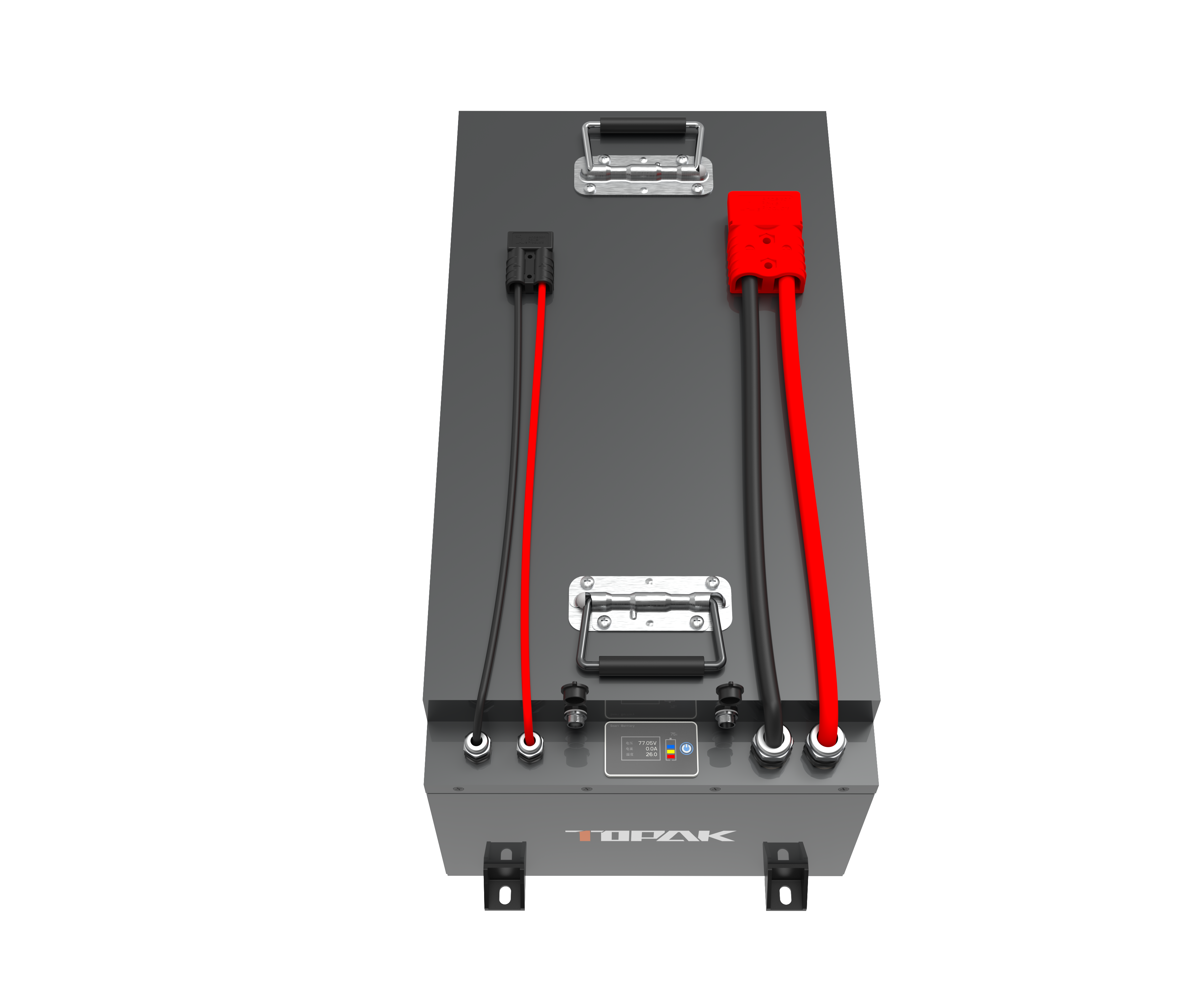

A940 73.6V 105Ah
|
Items
|
TP-A940-73.6V/105Ah
|
|
Nominal voltage (V)
|
73.6V
|
|
Nominal capacity (Ah)
|
105Ah
|
|
Rated energy(Wh)
|
7728Wh（7.728KWh）
|
|
Maximum charging voltage(V)
|
7728Wh（7.728KWh）
|
|
Maximum charging current(A)
|
105A |
|
Maximum continuous discharge current (A)
|
105A
|
|
Maximum peak discharge current@30seconds(A)
|
200A
|
|
Maximum load power (W)
|
7728W |
|
Discharge cut-off voltage (V)
|
50.6V
|
|
Cell model
|
LF105-105Ah
|
|
Battery brand
|
Yiwei
|
|
Cell combination method
|
23S1P
|
|
Cycle (25°C.0.5C,DOD80%)
|
2000
|
|
Protection class
|
IP65
|
|
Overall dimensions (mm)
|
620*300*236mm
|
|
Reference weight (kg)
|
About 65kg
|
|
Application areas
|
golf cart
|
|
Charging temperature(°C)
|
0~45℃
|
|
Discharge temperature(°C)
|
-20℃~55℃
|
|
Communication model
|
CAN
|
