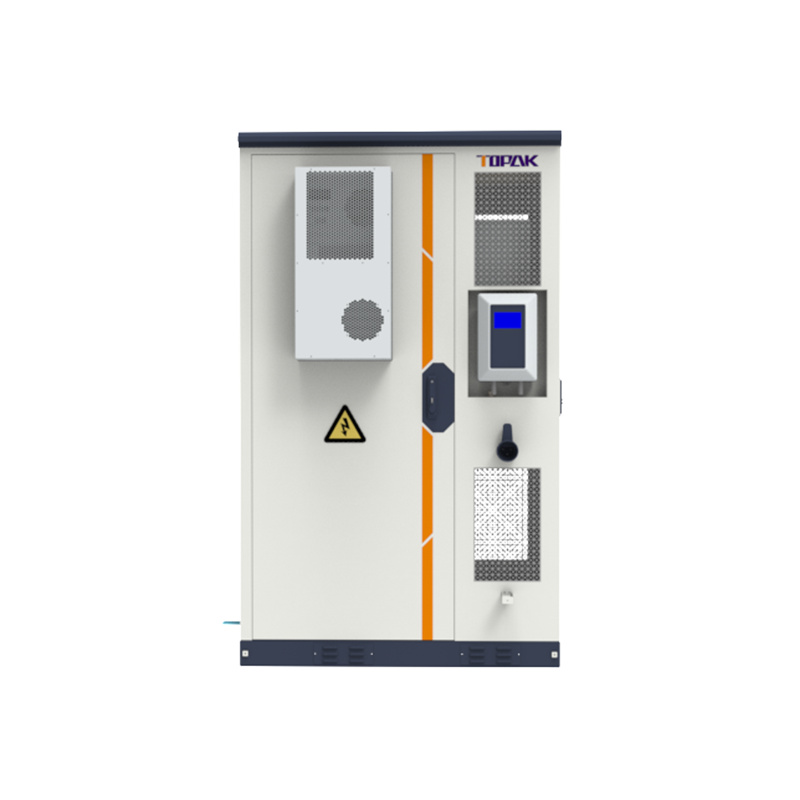

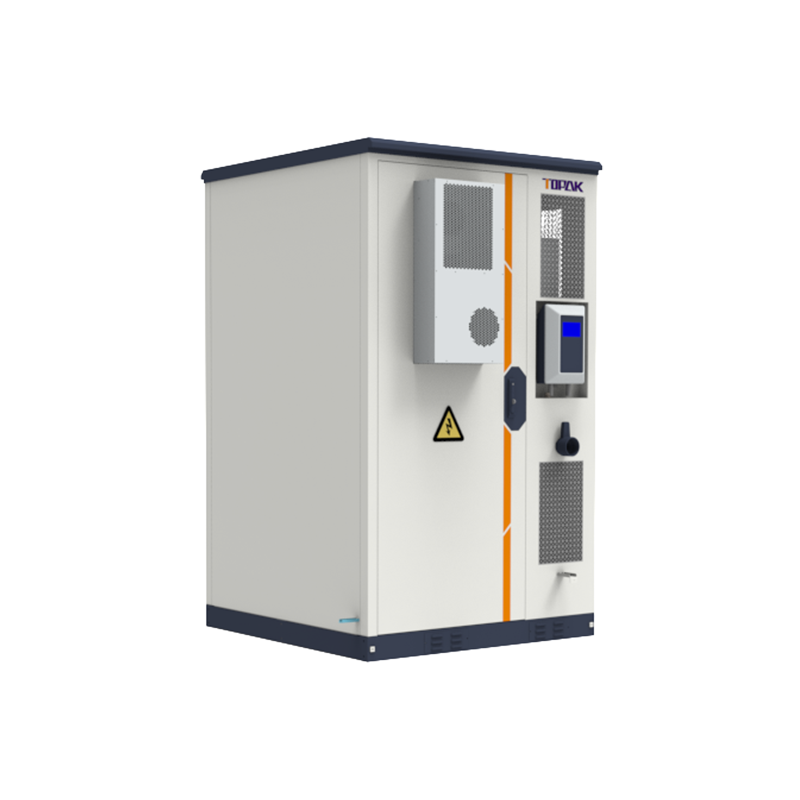

TOPAK-32KW-64KWh-LV
|
PV Parameters
|
|
|
PV configuration(PCS)
|
550W*84/7S12P
|
|
Maximum power(W)
|
46.2KW
|
|
Open voltage(V)
|
49.9V
|
|
Short-circuit current(A)
|
14A
|
|
Max.power point voltage(V)
|
41.96V
|
|
Max.power point current(A)
|
13.11A
|
|
Conversion efficiency (%)
|
21.30%
|
|
Max.system voltage(V)
|
1500V
|
|
Size(mm)
|
2278*1134*30mm
|
|
Inverter Parameter
|
|
|
Output power(W)
|
32KW
|
|
Max. output power(W)
|
35.2KW
|
|
Output AC voltage(V)
|
220VAC/230VAC
|
|
Frequency (Hz)
|
50/60Hz
|
|
Max. PV power(W)
|
41.6KW
|
|
Max. PV DC voltage(V)
|
500V
|
|
MPPT voltage range(V)
|
125-425V
|
|
MPPT max. input current(A)
|
26+26+26A
|
|
No. MPPT/Max parallel string
|
6/2+2+2
|
|
Size/W*D*H(mm)
|
464*282*763mm
|
|
Battery Parameter
|
|
|
Parameters(V/Ah/KWh)
|
51.2V314Ah*4/64.3KWh
|
|
Maximum current(A)
|
≤600A
|
|
Number of batterys
|
4 PCS
|
|
Charging temperature(℃)
|
0~55℃
|
|
Discharge temperature(℃)
|
-20~60℃
|
