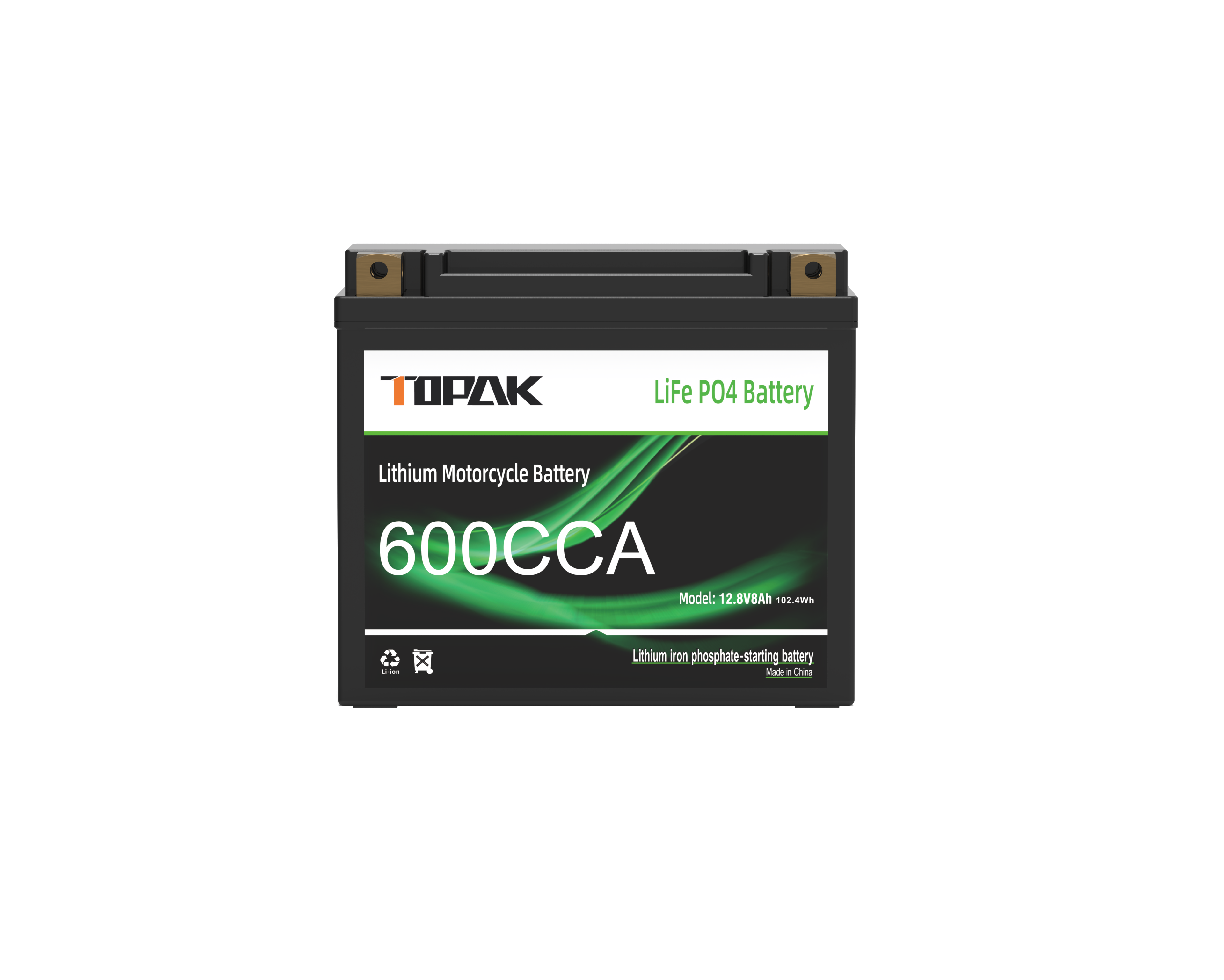

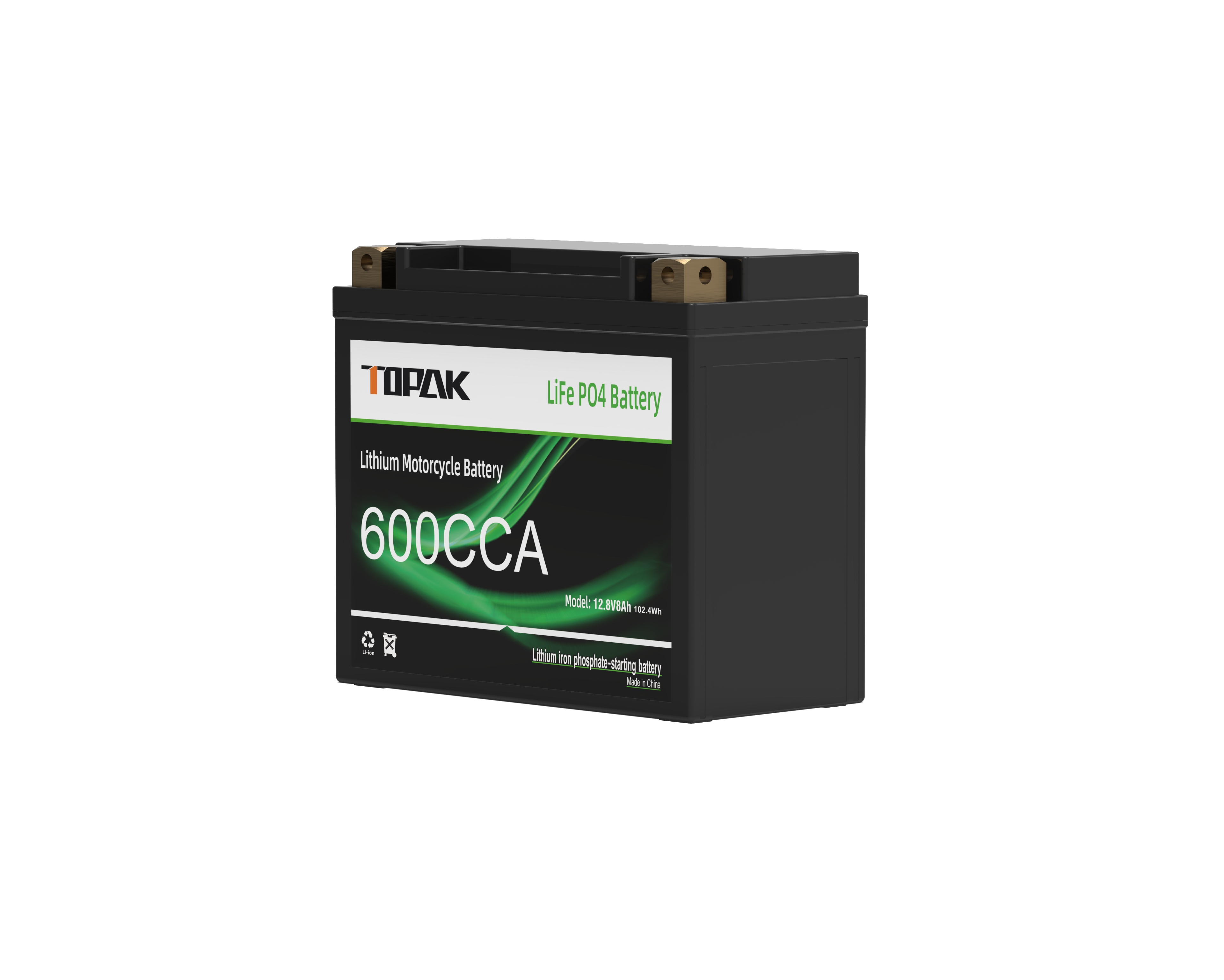

TOPAK-YTX20L 12.8V8Ah
|
Nominal capacity
|
8.0Ah@0.2C
|
|
Mix. capacity
|
8.0Ah@0.2C
|
|
Nominal energy
|
10.24Wh
|
|
Combination structure of battery
|
4S2P
|
|
Nominal voltage
|
12.8V
|
|
End of discharge voltage
|
9.6V
|
|
Standard charge voltage
|
14.6±0.2V
|
|
Allowed Max. charge voltage
|
15.0V
|
|
Standard charge current
|
4.0A
|
|
Allowed Max. charge current
|
24.0A
|
|
Standard discharge current
|
8.0A
|
|
Peak discharge current 1
|
30C(240A) ≥ 30S
|
|
Peak discharge current 2
|
600A ≥2.0S
|
|
Internal Resistance
|
≤14.0mΩ
|
|
Weight
|
Approx. 2.7kg
|
|
Ex-factory capacity
|
Approx.80% SOC
|
|
Operation temperature
|
Discharge -20℃~60℃
Charge 0℃~45℃ |
|
Storage environment
|
≤1Month 0～+35℃、5～75%RH ≤6Month 10～+25℃、5～75%RH Recommend environment 15～+25℃、5～75%RH |
