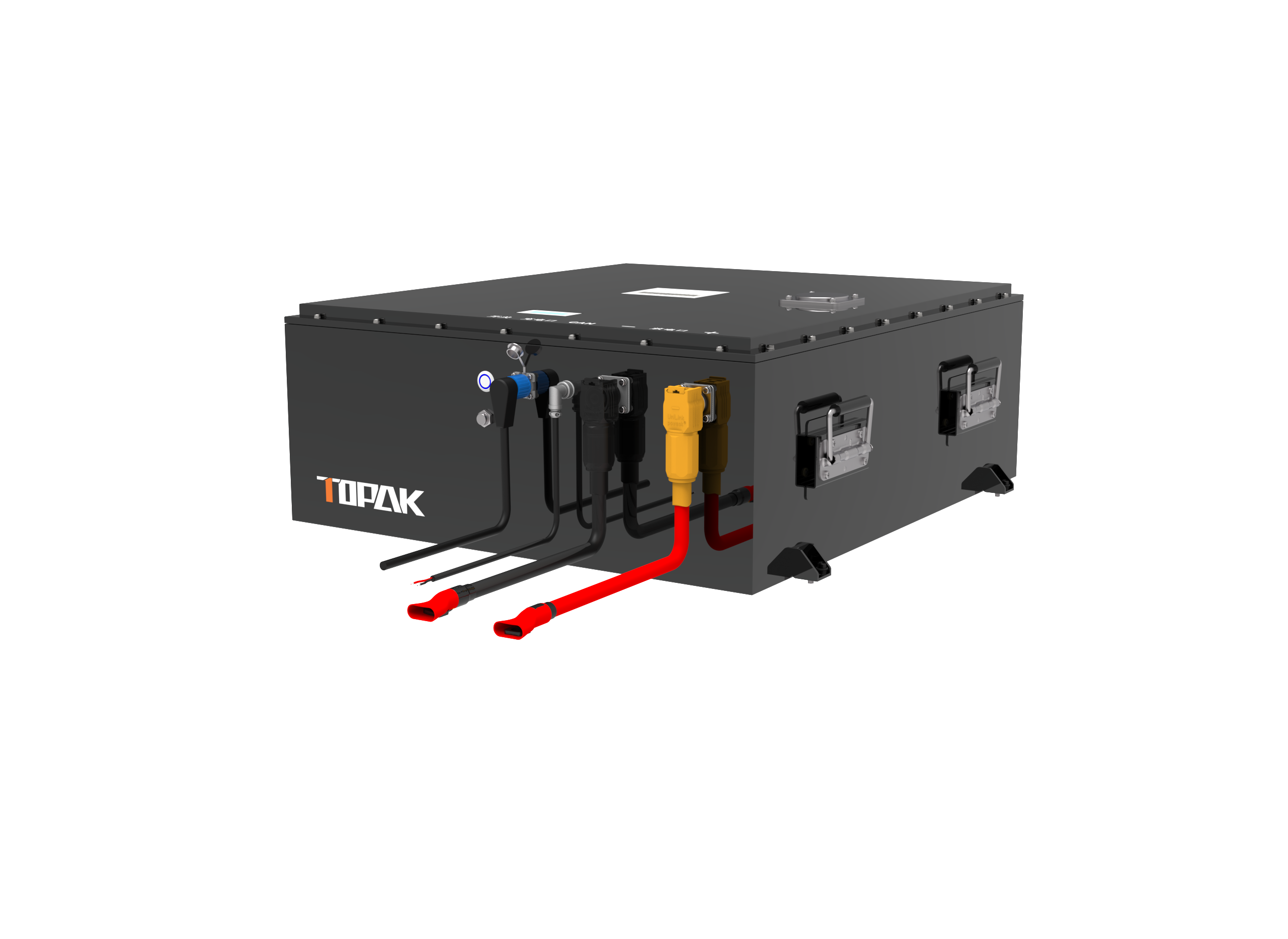

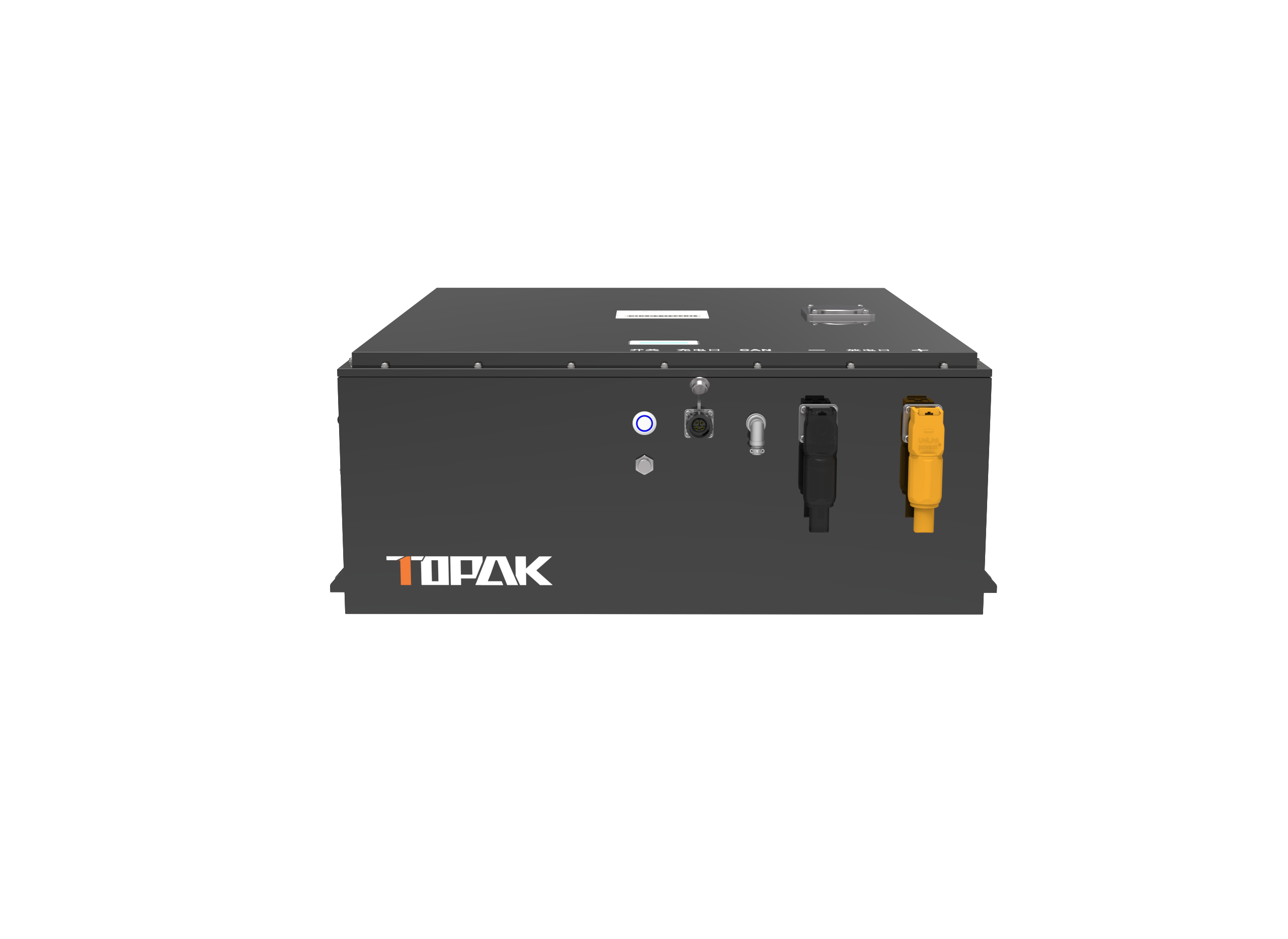

TOPAK-A986 102V108Ah
| Specifications Nominal Voltage (V): |
102V
|
| Nominal Capacity(Ah): |
108Ah
|
| Rated Energy (Wh): |
11016Wh(11.016KWh)
|
| Maximum Charging Voltage (V): |
124.8V
|
| Maximum Charging Current (A): |
54A
|
| Maximum Continuous Discharge Current(A): |
220A
|
| Maximum Peak Discharge Current @30s (A): | 350A |
| Maximum Load Power (W): |
22440W
|
| Discharge Cut-OffVoltage (v): |
64V
|
| Cell Model: |
IFP20100140A-27Ah
|
| Cell Combination: |
32S4P
|
| Cycle Life: |
2000 room temperature (80%)
|
| Protection Rating: | IP67 |
| Approximate Weight (kg): |
Approx. 109.5kg
|
|
Dimension(mm)：
|
680*595*245
|
| Application Areas: |
MOTORBOATS, ELECTRIC BAMBOO RAFTS
|
