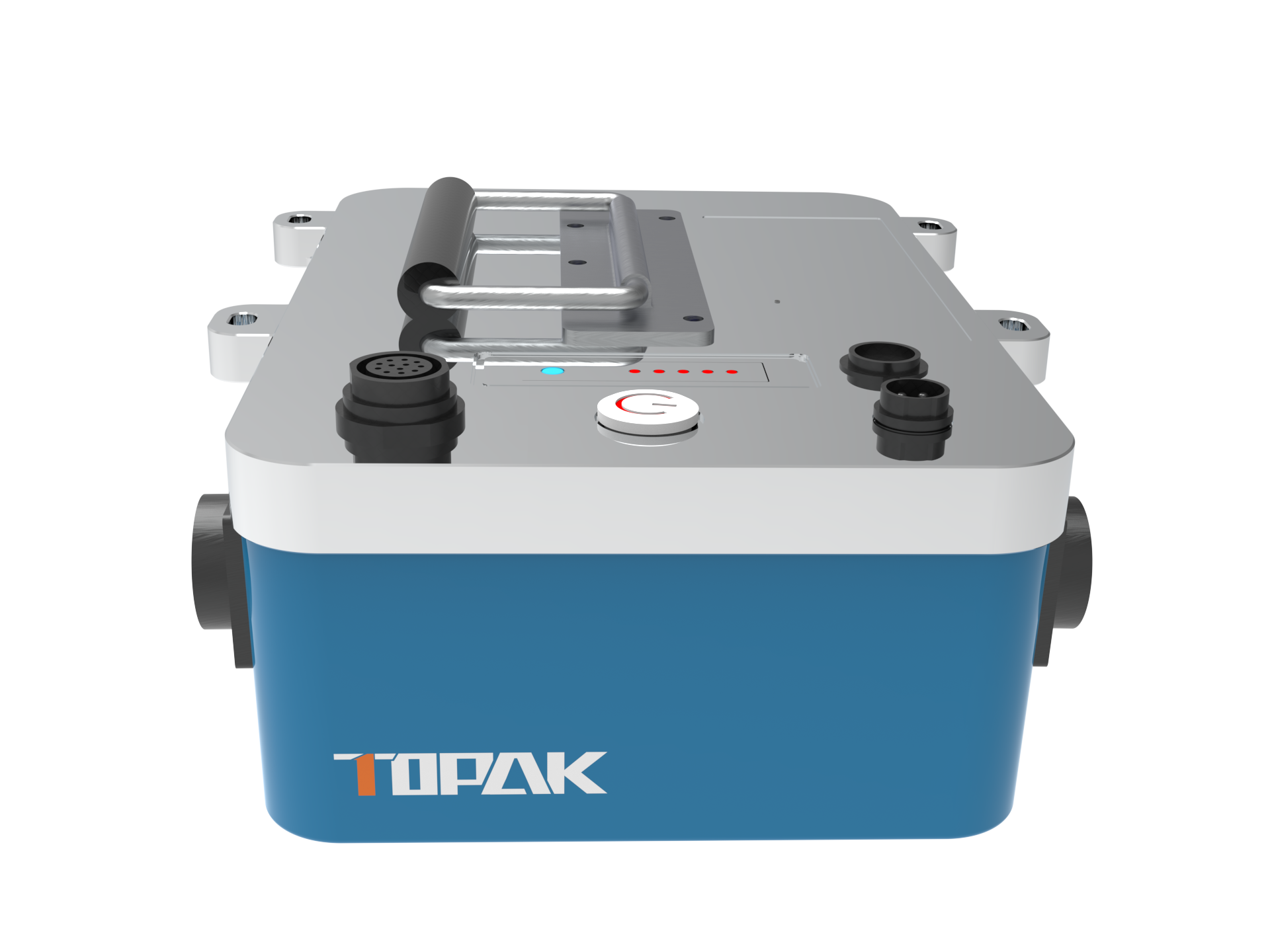

TOPAK-C2097 29.04V34.3Ah
| Specifications Nominal Voltage (V): |
29.04V
|
| Nominal Capacity(Ah): |
34.3Ah
|
| Rated Energy (Wh): |
996Wh(0.996KWh)
|
| Maximum Charging Voltage (V): |
33.6V
|
| Maximum Charging Current (A): |
10A
|
| Maximum Continuous Discharge Current(A): |
50A
|
| Maximum Peak Discharge Current @2s (A): |
80A
|
| Maximum Load Power (W): |
1452W
|
| Discharge Cut-OffVoltage (v): |
21.2V
|
| Cell Model: |
50E-21700-5Ah
|
| Cell Brand: |
Samsung
|
| Cell Combination: |
8S7P
|
| Cycle Life: |
500 at room temperature 0.5C/1C(80%)
|
| Protection Rating: | IP67 |
| Product Manual Number: |
22-01-000030
|
| Approximate Weight (kg): |
Approx. 6.4 kg
|
| Application Areas: |
UNMANNED SHIPS
|
